ATAG XL140 136kW Commercial Condensing Boiler

€3,315.00

The ATAG XL140 136kW Commercial Condensing Boiler is designed for high-demand central-heating applications. It features a modulating pump, integrated controls and support for professionally designed cascade installations. With 120kW useful output at 80/60°C and 130kW at 50/30°C, it is suited to projects requiring substantial heating capacity. Confirm technical compatibility, destination approvals and current availability before ordering.

Fuel Supplier Europe8 Items sold in last 24 hours
18 People watching this product now!

ATAG XL140 136kW Commercial Condensing Boiler

ATAG XL140 Commercial Boiler

The ATAG XL140 Commercial Condensing Boiler is a high-output natural-gas heating appliance from the ATAG XL Commercial range. Designed for demanding central-heating systems, it combines condensing technology, modulating burner operation, an integrated pump and boiler control functions.

The XL140 has a nominal heat input of 136.4kW on a gross calorific value basis and a useful heating output of 120kW at 80/60°C. At a lower flow and return temperature of 50/30°C, the documented useful output is 130kW.

These characteristics make the XL140 a potential choice for commercial plant rooms and other substantial heating installations where its output, fuel configuration and system design meet the project’s requirements.

Key Features of the ATAG XL140

  • High-output commercial heating: Provides 120kW useful output at 80/60°C and 130kW at 50/30°C.
  • Condensing technology: Designed to recover additional heat from flue gases during suitable operating conditions.
  • Modulating burner: Adjusts heat production within the manufacturer’s specified operating range.
  • Integrated modulating pump: Supports circulation through a correctly designed heating system.
  • Built-in control functions: Enables boiler operation and monitoring within a compatible installation.
  • Cascade system potential: The manufacturer documents arrangements using up to eight XL boilers.
  • Flexible installation configurations: The manual describes wall-mounted and free-standing arrangements, including in-line and back-to-back cascades.

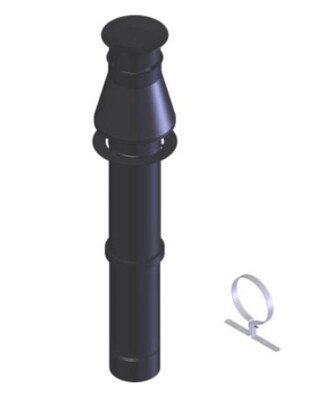

  • Flue options: Supports specified individual and collective flue arrangements when designed and installed in accordance with the manufacturer’s instructions.

Check the product quotation to establish whether the order covers a standalone boiler or a larger plant-room package. Frames, headers, flue components, system controls and other accessories should not be assumed to be included.

Heating Output and Modulation

The ATAG XL140 provides different useful output ratings depending on operating temperatures.

At 80/60°C, its useful output is rated at 120kW, with a modulation range of 17.6–120kW. At 50/30°C, its useful output is rated at 130kW, with a modulation range of 19.8–130kW.

Lower-temperature operation may support condensing performance when the wider system is designed to operate under those conditions. Actual efficiency and fuel consumption depend on heat demand, return-water temperature, controls, commissioning and maintenance.

The distinction between heat input and useful output is important when comparing commercial boilers. The XL140’s 136.4kW gross heat input is not the same as its 120kW useful output at 80/60°C.

Energy Efficiency and Environmental Performance

The manufacturer lists a seasonal space-heating efficiency of 94% and an A seasonal space-heating efficiency class for the documented XL140 configuration.

The manual also lists 97.6% efficiency at full load at 80/60°C and 110.2% at low load at 50/30°C, both on a net calorific value basis.

The figure above 100% reflects the use of net calorific value as the calculation basis; it does not mean that the boiler creates energy. Comparisons should use the same efficiency methodology and operating conditions.

Actual energy use, operating costs and emissions depend on the installation, load profile, gas supply, controls and maintenance. Specific savings should only be claimed where they are supported by a suitable comparison.

Commercial Applications

Subject to professional system design, the ATAG XL140 may be considered for:

  • Commercial offices and business premises
  • Hotels and hospitality buildings
  • Warehouses and industrial facilities
  • Schools and institutional buildings
  • Multi-unit residential developments
  • Large central-heating plant rooms
  • Projects using engineered multiple-boiler cascades

These are potential applications, not a guarantee that the model is suitable for every building. A heating designer should calculate the building’s heat demand and assess flow rates, hydraulic separation, controls, flue requirements, redundancy and local regulations.

Cascade and Packaged Plant-Room Options

The ATAG XL Commercial documentation describes cascade installations using up to eight boilers. Multiple-boiler systems can be designed to provide higher combined output and flexibility, subject to the manufacturer’s instructions and a suitable engineering design.

The range can also be considered for pre-packaged plant-room solutions. Depending on the project, a package may require a supporting frame, pre-built pipework, headers, connections, controls and flue equipment.

The contents of any packaged solution must be confirmed in the quotation. Do not assume that the full cascade assembly is supplied with an individual XL140 boiler.

Technical Specifications About ATAG XL140 Commercial Boiler

Specification Manufacturer-listed value
Manufacturer ATAG
Product range XL Commercial
Model XL140
Appliance type Commercial condensing central-heating boiler
Fuel Natural gas in the cited technical table
Nominal heat input, gross (Hs) 136.4kW
Nominal heat input, net (Hi) 123kW
Useful output at 80/60°C 120kW
Useful output at 50/30°C 130kW
Modulation range at 80/60°C 17.6–120kW
Modulation range at 50/30°C 19.8–130kW
Full-load efficiency at 80/60°C, net basis 97.6%
Low-load efficiency at 50/30°C, net basis 110.2%
Seasonal space-heating efficiency 94%
Seasonal efficiency class A
Pump Integral modulating pump
Controls Integrated boiler control functions
Cascade arrangements Up to eight boilers described in manufacturer documentation
Concentric flue connection 100/150mm
Parallel flue connection 2 × 100mm
Gas connection 1¼ inch
Heating flow connection 1½ inch
Heating return connection 1½ inch
Condensate connection 26mm
Maximum flow temperature 85°C
Electrical supply 230V / 50Hz
Indoor sound power level 53dB
Dimensions (W × H × D), technical table 660 × 1065 × 460mm
Installation/mounting height shown in the manual 1715mm

These values are drawn from the cited XL Series technical documentation. Verify the exact appliance revision, model data plate, installation clearances, gas configuration, electrical requirements and flue design before purchase or installation.

Source ATAG Commercial Heating Equipment from EuroFuelSupply

EuroFuelSupply supports enquiries for heating equipment for residential, trade and commercial projects across supported European destinations.

For the ATAG XL140, contact our team to confirm current availability, pricing, destination compatibility and the configuration required for your installation.

For a commercial or project quotation, please provide:

  • Required number of boilers
  • Delivery country and location
  • Required heating output
  • Whether a cascade or packaged plant-room solution is required
  • Known flue, control and hydraulic requirements
  • Project timeframe

Request a quotation: https://eurofuelsupply.com/get-a-quote/

Contact EuroFuelSupply: https://eurofuelsupply.com/contact-us/

Frequently Asked Questions

What is the useful output of the ATAG XL140?

The manufacturer lists 120kW useful output at 80/60°C and 130kW at 50/30°C. Its nominal gross heat input is 136.4kW.

Is the ATAG XL140 designed for commercial heating?

Yes. It belongs to ATAG’s XL Commercial range and is intended for high-output central-heating systems. A qualified heating designer should confirm the correct capacity and configuration for the project.

Can the ATAG XL140 be installed in a cascade?

Yes. The manufacturer’s XL Series documentation describes cascade arrangements using up to eight boilers. The number and arrangement used for a particular installation must follow the manufacturer’s instructions and site-specific engineering design.

Does the XL140 include a domestic hot-water cylinder?

The XL140 is a central-heating boiler. A separate cylinder or other suitable hot-water generation arrangement must be specified if the project requires domestic hot water. Confirm which components are included in the supplier’s quotation.

What fuel does the ATAG XL140 use?

The cited technical documentation specifies natural gas and lists a gas category for the documented configuration. Do not assume LPG compatibility for a particular unit without verifying its data plate and approved configuration.

What flue arrangements are available?

The installation manual describes individual and collective flue arrangements, including specified open and room-sealed configurations. The correct design depends on the installation, applicable regulations and manufacturer’s instructions.

What is the seasonal efficiency of the XL140?

The cited documentation lists 94% seasonal space-heating efficiency and an A efficiency class. Separate operating-point efficiency figures use the net calorific value basis and should not be compared directly with gross-basis figures.

Can I order the ATAG XL140 for a project outside the UK?

Confirm the specific unit’s destination-market approvals, gas compatibility, documentation and local service arrangements before ordering. EuroFuelSupply must also confirm delivery availability for the intended destination.

How can I request a trade quotation?

Contact EuroFuelSupply with the model, required quantity, destination and project requirements. Pricing, availability and any cascade or packaged-system options must be confirmed for the specific enquiry.
