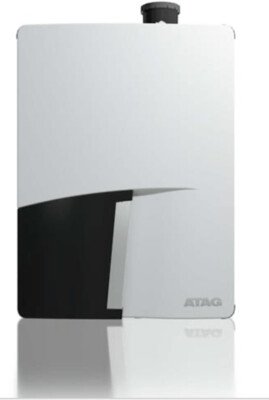

ATAG Q60SR 60kW System Boiler

€2,851.00

The ATAG Q60SR is a high-output, natural-gas system boiler designed for demanding central-heating applications. Part of the ATAG QR Series, it features a stainless-steel heat exchanger, built-in pump and integrated controls. It operates with a separate hot-water cylinder and can be used in appropriately designed cascade installations. The published heating output range is approximately 8.8–52.9kW at 80/60°C, depending on operating conditions.

Fuel Supplier Europe9 Items sold in last 24 hours
8 People watching this product now!

ATAG Q60SR 60kW System Boiler

ATAG Q60SR System Boiler

The ATAG Q60SR system boiler is a high-output gas-fired boiler designed for central-heating installations that require substantial heating capacity. Part of the ATAG QR Series, it combines a stainless-steel heat exchanger, built-in pump and integrated control functions in a single boiler.

The Q60SR is a system boiler, not a combi boiler. It supplies heat to the central-heating circuit and works with a separate compatible hot-water cylinder where domestic hot water is required.

With a nominal heat input of 60kW gross and a useful heating output of up to 52.9kW at 80/60°C, the ATAG Q60SR is suited to appropriately designed larger residential and light-commercial heating systems.

Key Features of the ATAG Q60SR

  • ATAG QR Series system boiler
  • Natural-gas model listed under reference 4126110
  • 60kW nominal heat input on a gross calorific value basis
  • Useful heating output up to 52.9kW at 80/60°C
  • Useful heating output up to 58.4kW at 50/30°C
  • Modulating heating output
  • Stainless-steel heat exchanger
  • Built-in circulation pump
  • Integrated boiler control functions
  • Compatible with a separate domestic hot-water cylinder
  • Designed for suitable cascade heating arrangements
  • Multiple flue configurations, subject to manufacturer guidance and installation design

Confirm the exact configuration, accessories and applicable technical documentation for the unit being supplied before ordering.

High-Output Central Heating

The ATAG Q60SR is designed for heating systems that need more capacity than a typical domestic wall-mounted boiler can provide.

Its nominal heat input is 54kW on a net calorific value basis, equivalent to 60kW on a gross basis. The nominal useful output is 52.9kW at 80/60°C and 58.4kW at 50/30°C.

The boiler modulates its output to respond to the heating demand within its specified operating range. Correct sizing remains important: the selected boiler should match the building heat loss and the requirements of the complete heating system.

Stainless-Steel Heat Exchanger

The Q60SR uses a stainless-steel heat exchanger, a key feature of the ATAG QR Series.

The heat exchanger transfers heat from combustion to the heating water. Correct water quality, system preparation, installation and routine servicing are important to maintain reliable boiler operation over time.

Built-In Pump and Boiler Controls

The ATAG Q60SR includes a built-in pump and integrated boiler control functions. These features form part of the boiler’s heating-system operation.

The complete system may still require compatible external components, controls, hydraulic equipment and safety devices, depending on the installation design. Check the applicable ATAG installation manual before specifying accessories.

Works with a Separate Hot-Water Cylinder

As a system boiler, the ATAG Q60SR supplies the central-heating circuit and can be paired with a compatible hot-water cylinder to provide stored domestic hot water.

The cylinder is a separate component and is not an integrated hot-water tank inside the boiler. Cylinder capacity and recovery performance should be selected according to the property’s hot-water demand.

This configuration can be appropriate for larger homes, multi-bathroom properties and other buildings where a separate stored hot-water supply is required.

Cascade Installation Options

The ATAG QR Series was designed to support cascade installations in suitable applications. Multiple boilers can be configured as part of a professionally engineered heating system to increase available capacity.

The number of boilers, controls, hydraulic arrangement, flue system and overall output must be determined from the manufacturer’s instructions and project requirements. Do not assume that cascade components are included with an individual boiler.

Potential Applications

Depending on the calculated heat load and installation design, the ATAG Q60SR may be considered for:

  • Larger residential properties
  • Multi-bathroom homes with a separate hot-water cylinder
  • Offices and commercial premises
  • Light-commercial heating installations
  • Suitable multi-boiler cascade systems
  • Buildings requiring a high-output central-heating appliance

The suitability of a 60kW-class boiler should be confirmed by a qualified heating designer or installer. Building size alone is not sufficient to determine the required output.

Technical Specifications

Specification ATAG Q60SR
Manufacturer ATAG
Series QR Series
Model Q60SR
Product type Gas-fired system boiler
Product reference listed by EuroFuelSupply 4126110
Fuel listed on product page Natural gas
Nominal heat input, net (LCV) 54.0kW
Nominal heat input, gross (HCV) 60.0kW
Useful output at 80/60°C 52.9kW nominal
Useful output at 50/30°C 58.4kW nominal
Modulation range at 80/60°C Approximately 8.8–52.9kW
Modulation range at 50/30°C Approximately 9.8–58.4kW
Heat exchanger Stainless steel
Circulation pump Built in
Domestic hot water Via a separate compatible cylinder
Installation type Indoor; follow manufacturer instructions
Cascade use Supported in appropriately designed installations

Specifications are based on ATAG QR Series technical documentation. Confirm the exact product revision and market-specific requirements against the documentation supplied with the actual unit.

Buying the ATAG Q60SR from EuroFuelSupply

EuroFuelSupply supplies heating equipment for residential, commercial, trade and wholesale requirements across supported European destinations.

If you are sourcing the ATAG Q60SR for a property, installation project or commercial heating system, provide the required quantity and delivery destination when requesting a quotation. This helps confirm availability, applicable delivery costs and the product configuration required for your project.

For larger orders or recurring trade requirements, contact EuroFuelSupply to discuss the required quantity and supply arrangements.

Frequently Asked Questions

What is the ATAG Q60SR?

The ATAG Q60SR is a gas-fired system boiler from the ATAG QR Series, designed for central heating in applications requiring a relatively high boiler output.

Is the ATAG Q60SR a 60kW boiler?

It is rated at 60kW nominal heat input on a gross calorific value basis. Its nominal useful heating output is 52.9kW at 80/60°C and 58.4kW at 50/30°C.

Is the Q60SR a combi boiler?

No. The Q60SR is a system boiler. It provides central heating and can work with a separate compatible hot-water cylinder.

Does the ATAG Q60SR include a hot-water cylinder?

The boiler is designed to work with a separate cylinder. Do not assume a cylinder is included unless it is explicitly listed in the order.

What fuel does the Q60SR use?

The EuroFuelSupply product page identifies reference 4126110 as the natural-gas model. Confirm fuel compatibility and local gas requirements before installation.

Does the Q60SR have a stainless-steel heat exchanger?

Yes. ATAG QR Series documentation identifies a stainless-steel heat exchanger as one of the range’s features.

Can the ATAG Q60SR be installed in a cascade system?

The ATAG QR Series supports suitable cascade installations. The design, controls, flue arrangement and additional equipment must follow the manufacturer’s instructions.

Is the ATAG Q60SR suitable for commercial buildings?

It may be suitable for selected light-commercial or larger residential applications where the calculated heating demand matches the boiler’s output. A qualified professional should determine the correct capacity.

What should I confirm before ordering?

Confirm the exact model and reference, fuel type, condition, included accessories, compatibility with the existing heating system, delivery destination and current availability.

Can I request a trade or wholesale quotation?

Yes. Contact EuroFuelSupply with the model, quantity and delivery destination to request pricing and availability for your requirements.
