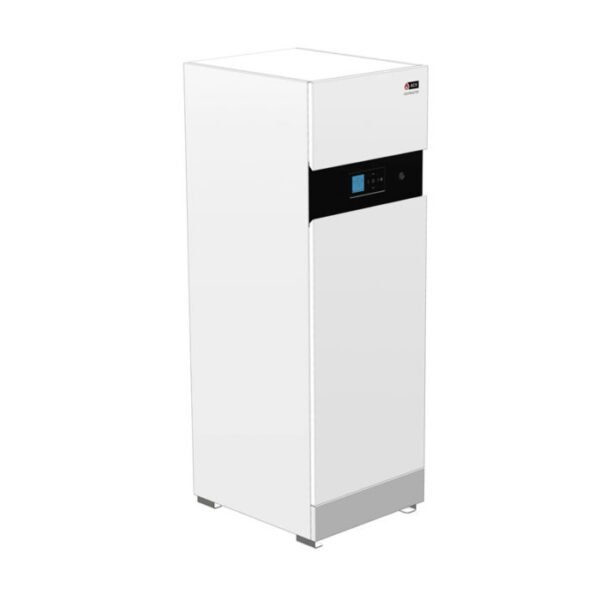

ACV HeatMaster TC Evo 25–45kW Condensing Boiler with Hot Water Price range: €6,327.60 through €9,286.80
Back to products
ACV WaterMaster Evo 70–85kW

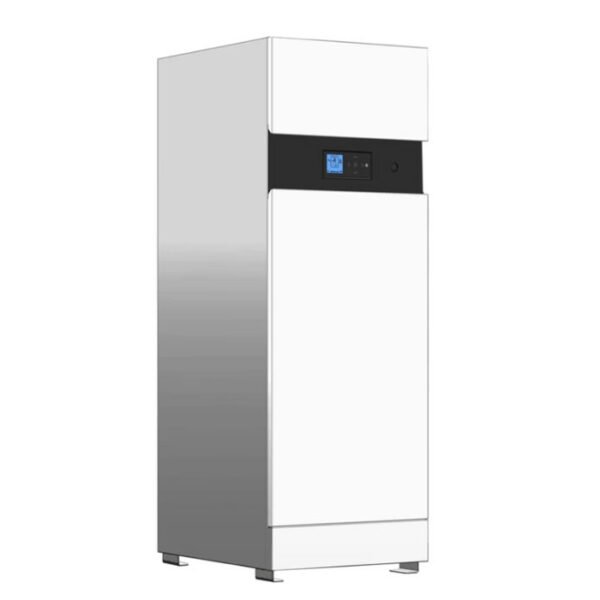

ACV WaterMaster Evo 70–85kW Condensing Hot Water Heater Price range: €7,504.80 through €9,532.80

ACV WaterMaster 120 Evo Condensing Hot Water Heater

Price range: €10,351.20 through €11,629.20

The ACV WaterMaster 120 Evo is a high-output condensing hot water heater designed for demanding domestic and commercial applications. Featuring ACV Tank-in-Tank technology, a stainless-steel heat exchanger and 190 litres of domestic hot-water storage, it delivers exceptional peak and continuous hot-water performance.

Fuel Supplier Europe4 Items sold in last 24 hours
12 People watching this product now!

ACV WaterMaster 120 Evo Condensing Hot Water Heater

ACV WaterMaster 120 Evo

The ACV WaterMaster 120 Evo is a direct gas-fired condensing domestic hot water heater designed for applications requiring substantial volumes of hot water with excellent recovery performance. Using ACV’s proven Tank-in-Tank technology, the WaterMaster 120 Evo combines stainless-steel construction, condensing operation and intelligent controls to provide efficient and reliable domestic hot-water production.

The WaterMaster 120 Evo is particularly suitable for hotels, hospitals, sports facilities, care homes, schools, commercial premises, apartment developments and large residential properties with high domestic hot-water demand.

Tank-in-Tank Technology

A defining feature of the WaterMaster Evo range is ACV’s Tank-in-Tank system.

The appliance uses:

  • 315L total capacity
  • 125L primary capacity
  • 190L domestic hot-water storage

The stainless-steel domestic hot-water tank is located inside the primary heating tank, creating a large heat-transfer surface and enabling rapid hot-water recovery.

Unlike conventional storage systems, ACV’s stainless-steel tank does not require an anode protection system, reducing maintenance requirements.

High Domestic Hot-Water Performance

The WaterMaster 120 Evo is designed for high-demand domestic hot-water applications.

ACV specifies:

  • Peak flow at 40°C: 900L per 10 minutes
  • First-hour flow at 40°C: 3,620L
  • Continuous flow at 40°C: 3,402L/hour
  • Peak flow at 45°C: 676L per 10 minutes
  • Continuous flow at 45°C: 2,928L/hour
  • Peak flow at 60°C: 440L per 10 minutes
  • Continuous flow at 60°C: 1,754L/hour

Actual hot-water performance depends on operating conditions, incoming water temperature and installation design.

Powerful Condensing Performance

The WaterMaster 120 Evo provides:

  • Maximum heating input (LCV): 115kW
  • Maximum heating input (HCV): 127.7kW
  • Combustion efficiency: 97.5%
  • EN89 DHW efficiency: 107.7%
  • Water heating efficiency: 85%
  • NOx Class: 6

The appliance condenses during domestic hot-water production, helping improve efficiency and reduce fuel consumption.

Stainless-Steel Construction

The WaterMaster 120 Evo incorporates:

  • Stainless-steel heat exchanger
  • Stainless-steel domestic hot-water tank
  • Corrosion-resistant design
  • No anode requirement

This construction contributes to reduced maintenance and long operational life.

ACVMax Controls

The WaterMaster 120 Evo includes ACVMax Touch controls with:

  • User-friendly interface
  • Modulating burner control
  • Temperature management
  • Safety functions
  • Modbus compatibility

The appliance also includes a high-efficiency circulator pump and intelligent control system.

Natural Gas and LPG

The WaterMaster 120 Evo is available for:

  • Natural gas
  • LPG

The correct fuel type must be confirmed before ordering.

Commercial Applications

The WaterMaster 120 Evo is suitable for:

  • Hotels
  • Hospitals
  • Care homes
  • Schools
  • Sports centres
  • Apartment buildings
  • Restaurants
  • Commercial premises
  • Large residential properties

Multiple units can also be installed in cascade where larger hot-water volumes are required.

Flue System

ACV specifies:

  • 100/150mm concentric flue
  • Maximum concentric flue length: 21 metres

Flue installation should always follow current ACV installation instructions.

Electrical Requirements

  • 230V
  • 50Hz
  • IP20
  • Electrical consumption: 380W
  • Electrical current: 1.7A

Technical Specifications

Specification WaterMaster 120 Evo
Product type Condensing DHW heater
Maximum heating input LCV 115kW
Maximum heating input HCV 127.7kW
Total capacity 315L
Primary capacity 125L
DHW capacity 190L
Peak flow at 40°C 900L/10 min
First-hour flow at 40°C 3,620L
Continuous flow at 40°C 3,402L/h
Peak flow at 60°C 440L/10 min
Continuous flow at 60°C 1,754L/h
Combustion efficiency 97.5%
DHW efficiency EN89 107.7%
Water heating efficiency 85%
NOx class 6
Flue 100/150mm
Max flue length 21m
Electrical supply 230V / 50Hz
Weight 299kg

Why Choose the ACV WaterMaster 120 Evo?

The WaterMaster 120 Evo offers:

  • Tank-in-Tank technology
  • High hot-water output
  • Condensing operation
  • Stainless-steel construction
  • ACVMax controls
  • Natural gas and LPG compatibility
  • Low NOx emissions
  • Commercial hot-water performance
  • Cascade capability
  • Compact footprint

Buy ACV WaterMaster 120 Evo in Europe

EuroFuelSupply supplies heating and hot-water systems to residential, commercial, installer, wholesale and project customers across supported European markets.

For quotations, confirm:

  • Fuel type
  • Quantity
  • Delivery destination
  • Installation requirements

Installation must always be carried out by suitably qualified professionals.

Frequently Asked Questions

What is the ACV WaterMaster 120 Evo?

The ACV WaterMaster 120 Evo is a direct gas-fired condensing domestic hot water heater using ACV Tank-in-Tank technology.

What is the heating input?

The WaterMaster 120 Evo provides 115kW maximum heating input (LCV) and 127.7kW HCV.

How much hot water does it store?

It has 190 litres of domestic hot-water storage and 315 litres total system capacity.

Is the WaterMaster 120 Evo condensing?

Yes. The appliance condenses during domestic hot-water production and provides EN89 efficiency of 107.7%.

What is Tank-in-Tank technology?

Tank-in-Tank technology places the stainless-steel DHW tank inside the primary tank for efficient heat transfer and rapid hot-water recovery.

Is it suitable for commercial applications?

Yes. The WaterMaster 120 Evo is suitable for hotels, healthcare, sports facilities, schools, apartment buildings and commercial projects.

Can multiple units be installed together?

Yes. ACV states that WaterMaster Evo units can be installed in cascade.

Can it operate on LPG?

Yes. The WaterMaster 120 Evo is available for natural gas and LPG configurations.

Does it require an anode?

No. ACV states that the stainless-steel tank does not require anode protection.

What flue system does it use?

The WaterMaster 120 Evo uses a 100/150mm concentric flue with a maximum length of approximately 21 metres.

What electrical supply is required?

230V, 50Hz single-phase electrical supply.
