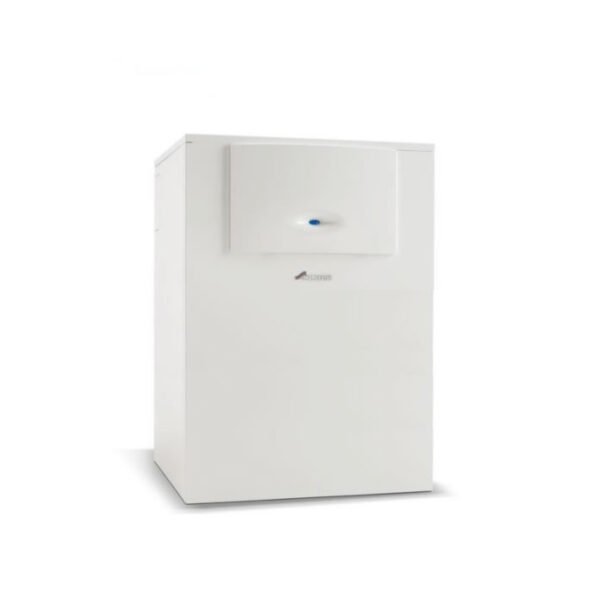

Worcester Greenstar Highflow 550CDi
Worcester Greenstar Highflow 550CDi Condensing Combi Boiler Price range: €3,384.00 through €3,552.00

ACV WaterMaster Evo 25–45kW Condensing Hot Water Heater

€5,024.40

The ACV WaterMaster Evo is a gas-fired condensing hot water heater available in 25kW, 35kW and 45kW models. Its stainless steel Tank-in-Tank technology delivers high domestic hot-water performance for residential, commercial and high-demand applications.

Fuel Supplier Europe9 Items sold in last 24 hours
13 People watching this product now!

ACV WaterMaster Evo 25–45kW Condensing Hot Water Heater

ACV WaterMaster Evo

The ACV WaterMaster Evo is a high-performance gas-fired condensing domestic hot water heater designed for applications requiring a reliable and substantial supply of hot water. The range is available in 25kW, 35kW and 45kW models, providing different levels of heating capacity while retaining ACV’s proven Tank-in-Tank hot water technology.

The WaterMaster Evo range is suitable for residential properties with high hot-water demand as well as commercial applications such as hospitality, catering, healthcare, education and multi-unit buildings.

ACV Tank-in-Tank Technology

A major feature of the WaterMaster Evo is ACV’s Tank-in-Tank technology. The stainless steel domestic hot-water tank is positioned inside the primary heating tank, allowing the appliance to transfer heat efficiently while maintaining a compact footprint.

The 25kW, 35kW and 45kW models each provide approximately 196 litres of total tank capacity, consisting of a 100-litre primary circuit and 96-litre domestic hot-water tank according to ACV’s technical data.

The stainless steel domestic hot-water tank does not require an anode protection system, helping simplify maintenance requirements.

25kW, 35kW and 45kW Models

The WaterMaster Evo range gives installers a choice of three output levels:

  • WaterMaster 25 Evo – 25kW maximum heating input
  • WaterMaster 35 Evo – 35kW maximum heating input
  • WaterMaster 45 Evo – 45kW maximum heating input

ACV lists maximum heating input on an HCV basis at approximately 27.8kW, 38.9kW and 50.0kW respectively, while the LCV-rated maximum heating inputs are 25kW, 35kW and 45kW.

High Domestic Hot-Water Performance

The WaterMaster Evo is designed for installations where consistent domestic hot-water availability is important.

At 40°C, ACV specifies peak ten-minute hot-water flows of:

  • 25 Evo: 361 litres/10 minutes
  • 35 Evo: 408 litres/10 minutes
  • 45 Evo: 451 litres/10 minutes

Continuous flow at 40°C is specified at approximately 788, 1,104 and 1,390 litres per hour respectively.

At 60°C, continuous flow is approximately 473 litres/hour for the 25 Evo, 662 litres/hour for the 35 Evo and 820 litres/hour for the 45 Evo. Actual performance depends on operating conditions and incoming water temperature.

Condensing Hot-Water Technology

The WaterMaster Evo condenses during domestic hot-water operation. ACV specifies EN89 domestic hot-water efficiencies of up to 108.5% for the 25, 35 and 45 Evo models under the relevant test methodology.

The appliances also use a modulating premix gas burner and ACVMax controls, helping regulate combustion and appliance operation efficiently.

Stainless Steel Construction

The WaterMaster Evo incorporates a stainless steel domestic hot-water tank and stainless steel heat exchanger.

The stainless steel heat exchanger is designed to reduce maintenance requirements and contribute to long service life, while the Tank-in-Tank configuration provides a compact solution for high hot-water demand.

Natural Gas and LPG

The WaterMaster Evo range is available for natural gas and LPG configurations. The exact gas configuration, product reference and conversion requirements should be confirmed against the specific model being supplied before ordering.

ACV lists dedicated product references for the individual WaterMaster Evo models, so the exact product code should be matched to the required fuel and market configuration.

Compact Floor-Standing Installation

The WaterMaster Evo is designed for floor installation and uses a concentric flue connection.

ACV specifies an 80/125mm flue connection and a maximum concentric flue length of up to 20 metres under the specified installation conditions. The appliance has a substantial floor-standing format, with the empty weight listed at approximately 177kg for the 25, 35 and 45 Evo models in ACV’s international product documentation.

Because installation dimensions, clearances, flue configuration and gas requirements must be checked against the exact model and local regulations, installation should be carried out by a suitably qualified heating professional.

Commercial and High-Demand Hot-Water Applications

The ACV WaterMaster Evo can be considered for applications where a conventional small domestic water heater may not provide sufficient hot-water performance.

Potential applications include:

  • Hotels and guest accommodation
  • Restaurants and catering facilities
  • Healthcare and care facilities
  • Schools and educational buildings
  • Multi-unit residential properties
  • Larger homes with high domestic hot-water demand
  • Commercial and light-industrial premises
  • Buildings requiring substantial domestic hot-water production

For larger requirements, ACV states that multiple units can be grouped in cascade for increased capacity or backup.

ACV WaterMaster Evo Technical Specifications

Specification WaterMaster 25 Evo WaterMaster 35 Evo WaterMaster 45 Evo
Maximum heating input, LCV 25kW 35kW 45kW
Maximum heating input, HCV 27.8kW 38.9kW 50.0kW
Total tank capacity 196L 196L 196L
Primary capacity 100L 100L 100L
DHW tank capacity 96L 96L 96L
DHW efficiency, EN89 108.5% 108.5% 108.5%
Peak flow at 40°C 361L/10 min 408L/10 min 451L/10 min
Continuous flow at 40°C 788L/h 1,104L/h 1,390L/h
Continuous flow at 60°C 473L/h 662L/h 820L/h
Energy efficiency class A A A
NOx class 6 6 6
Electrical supply 230V / 50Hz 230V / 50Hz 230V / 50Hz
Flue connection 80/125mm 80/125mm 80/125mm
Maximum primary pressure 3 bar 3 bar 3 bar
Maximum DHW pressure 8.6 bar 8.6 bar 8.6 bar
Empty weight Approx. 177kg Approx. 177kg Approx. 177kg

Technical values are based on ACV’s published WaterMaster Evo documentation and should be checked against the exact product revision and fuel configuration before installation.

Why Choose the ACV WaterMaster Evo?

The WaterMaster Evo combines several features designed for demanding hot-water installations:

  • ACV Tank-in-Tank technology
  • Gas-fired condensing operation
  • 25kW, 35kW and 45kW output options
  • Stainless steel domestic hot-water tank
  • Stainless steel heat exchanger
  • High peak and continuous DHW performance
  • ACVMax burner and control technology
  • Natural gas and LPG configurations
  • Floor-standing installation
  • A-rated water-heating efficiency
  • NOx Class 6 combustion performance
  • Cascade capability for larger installations

ACV WaterMaster Evo for European Supply

EuroFuelSupply supplies heating, hot-water and energy equipment for supported European markets, serving residential customers, installers, trade buyers, developers, retailers and wholesale customers.

For the ACV WaterMaster Evo, confirm the required 25kW, 35kW or 45kW model, fuel type, product reference and destination before ordering so the correct configuration can be supplied.

For commercial projects or multiple-unit requirements, request a quotation for current pricing and availability.

Important Installation Note

The WaterMaster Evo is a gas-fired heating appliance and must be installed, commissioned and serviced by an appropriately qualified professional in accordance with the appliance manufacturer’s instructions and the regulations applicable in the installation country.

Frequently Asked Questions

What is the ACV WaterMaster Evo?

The ACV WaterMaster Evo is a gas-fired condensing domestic hot water heater using ACV’s Tank-in-Tank technology. It is available in 25kW, 35kW and 45kW versions.

What WaterMaster Evo sizes are available?

The range includes the WaterMaster 25 Evo, WaterMaster 35 Evo and WaterMaster 45 Evo, with maximum LCV heating inputs of 25kW, 35kW and 45kW respectively.

How much hot water does the WaterMaster Evo store?

The WaterMaster Evo models have a total tank capacity of approximately 196 litres, including a 96-litre domestic hot-water tank and a 100-litre primary circuit.

Is the WaterMaster Evo a condensing water heater?

Yes. ACV specifies condensing operation in domestic hot-water mode, with EN89 efficiency of 108.5% for the 25, 35 and 45 Evo models under the relevant test conditions.

Does the WaterMaster Evo use Tank-in-Tank technology?

Yes. Tank-in-Tank is one of the defining features of the ACV WaterMaster Evo range. The stainless steel domestic hot-water tank is located within the primary heating tank.

Can the WaterMaster Evo run on LPG?

ACV lists the WaterMaster Evo range as available in natural gas and LPG configurations. The exact product reference and fuel configuration should be confirmed before ordering.

What is the maximum hot-water flow?

At 40°C, ACV lists peak ten-minute flows of 361 litres for the 25 Evo, 408 litres for the 35 Evo and 451 litres for the 45 Evo. Actual performance depends on operating conditions and incoming water temperature.

Is the WaterMaster Evo suitable for commercial applications?

Yes. Its high domestic hot-water performance makes the range suitable for applications such as hospitality, catering, healthcare, education and multi-unit residential buildings, subject to proper system design.

Can multiple WaterMaster Evo units be installed together?

Yes. ACV states that multiple units can be grouped in cascade for larger applications or backup capacity.

Does the WaterMaster Evo require an anode?

ACV states that its stainless steel domestic hot-water tank does not require anode protection.

Is the WaterMaster Evo suitable for every installation?

No. The correct model must be selected based on hot-water demand, fuel type, hydraulic design, flue requirements, local regulations and installation conditions. A qualified heating professional should assess the installation before purchase.
