Atlantis 10000L Bunded Steel Oil Tank

€8,195.00

The Atlantis 10000L Bunded Steel Oil Tank is designed for high-capacity storage of suitable heating oil, kerosene, diesel and other manufacturer-approved liquids. Its steel inner tank and outer bund provide secondary containment to help manage the risk of leaks. Available in standard and cabinet-equipped configurations, it features dedicated filling, outlet, gauge and vent connections. Contact EuroFuelSupply to confirm the required configuration, included accessories, current price and delivery arrangements.

Fuel Supplier Europe9 Items sold in last 24 hours
9 People watching this product now!

Atlantis 10000L Bunded Steel Oil Tank

10000L Bunded Steel Oil Tank

The Atlantis 10000L Bunded Steel Oil Tank is a high-capacity storage solution for commercial premises, agricultural operations, industrial facilities and larger properties that require substantial on-site oil storage. With a nominal capacity of 10,000 litres, it is designed to support bulk storage of suitable liquids, including heating oil, kerosene and diesel, subject to manufacturer compatibility guidance.

Manufactured from steel, the tank uses a double-wall design: the inner tank holds the stored liquid, while the outer bund provides secondary containment if the inner tank leaks. The standard model has a pitched roof, a protective painted finish and dedicated connections for filling, outlet, venting and tank contents monitoring.

Two configurations are available to consider: the standard tank and a version supplied with a lockable fill-point cabinet. Dimensions, weight and included equipment differ, so confirm the exact configuration before ordering.

Key features and benefits

  • 10,000-litre nominal capacity: Suitable for substantial oil-storage requirements.
  • Bunded steel construction: The outer tank provides secondary containment around the inner tank.
  • Standard 3 mm steel construction: Confirm the material specification for the exact model supplied.
  • Pitched roof design: A purpose-designed profile for suitable above-ground installations.
  • Holly Green finish: The manufacturer’s standard colour.
  • Dedicated connection points: Designed for filling, outlet, gauge and vent arrangements.
  • Two configuration options: Choose the standard tank or the cabinet-equipped version according to site and security requirements.
  • Optional accessories: Additional outlet equipment, gauges and other accessories may be available depending on the selected version.
  • Manufacturer-listed 10-year warranty: Confirm the warranty terms, exclusions and coverage before purchase.

Technical specifications

The following details distinguish the standard tank from the cabinet-equipped version. Confirm the final specification against the manufacturer’s documentation supplied with your quotation.

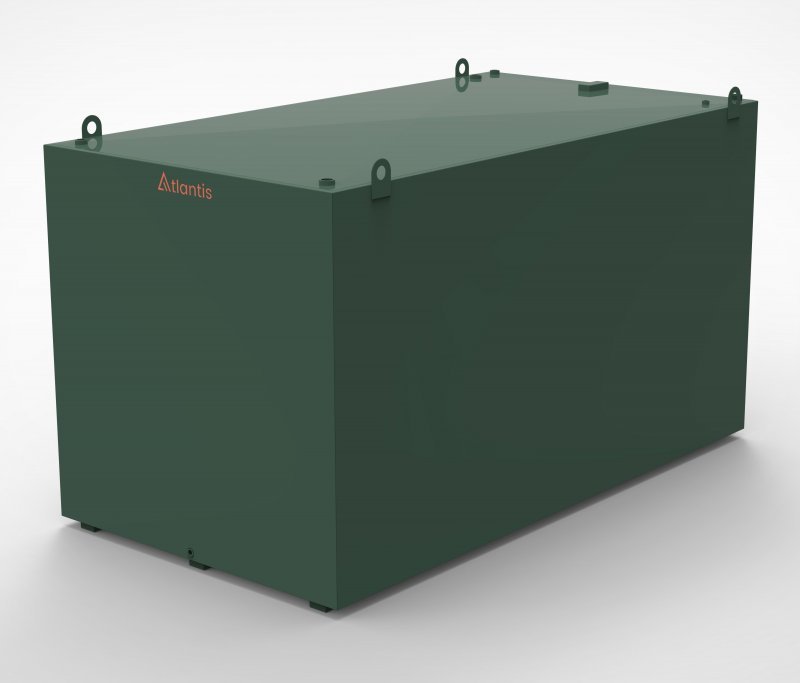

Standard Atlantis 10000L tank

  • Manufacturer: Atlantis
  • Product reference: TAN.BUS-10000
  • Nominal capacity: 10,000 litres
  • Approximate imperial capacity: 2,200 UK gallons
  • Construction: Steel inner tank with outer containment bund
  • Steel thickness: Listed as 3 mm
  • Standard colour: Holly Green
  • Length: Approximately 3,350 mm
  • Width: Approximately 1,830 mm
  • Height: Approximately 1,830 mm
  • Empty weight: Approximately 1,500 kg
  • Fill point: 2-inch
  • Spare top socket: 2-inch
  • Bottom outlet: 1-inch
  • Gauge ports: 1.5-inch connections for tank and bund gauges
  • Venting: Tank-to-bund vent and bund vent
  • Top suction/drain port: 1-inch
  • Support bearers: 50 × 100 mm full-length bearers
  • Roof design: Pitched
  • Finish: Protective anti-corrosion paint system
  • Warranty: Manufacturer-listed 10 years, subject to applicable terms

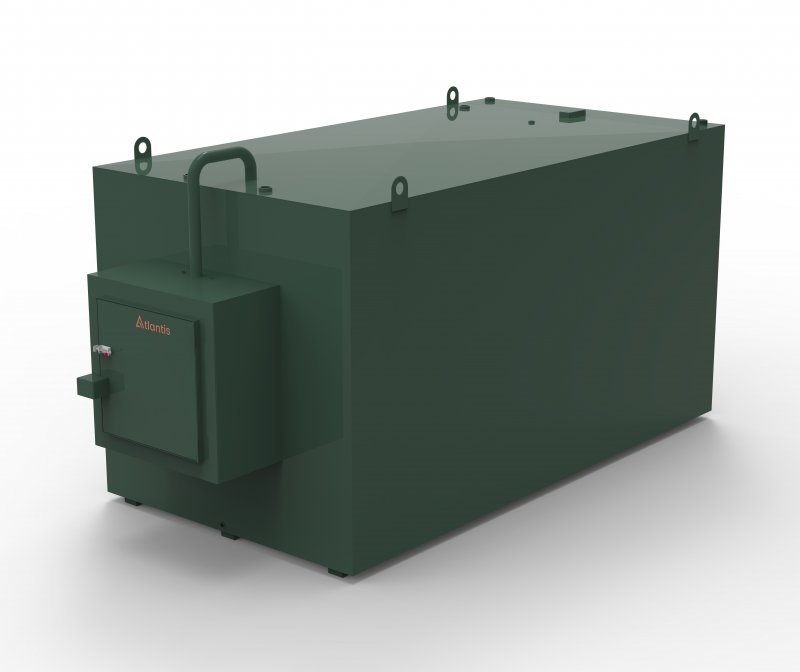

Atlantis 10000L tank with fill-point cabinet

  • Nominal capacity: 10,000 litres
  • Length: Approximately 3,800 mm, including cabinet
  • Width: Approximately 1,830 mm
  • Height: Approximately 1,830 mm
  • Empty weight: Approximately 1,540 kg
  • Cabinet dimensions: Approximately 900 × 900 × 450 mm
  • Cabinet: Lockable swing-door design
  • Filling arrangement: Front-mounted low-level fill point with a 2-inch connection inside the cabinet
  • Fittings: Configuration-specific tank, bund, vent and probe connections
  • Gauge: Hydrostatic Unitel contents gauge listed for this version
  • Overfill alarm: Battery-powered alarm listed for this version
  • Support bearers: 50 × 100 mm full-length bearers
  • Standard colour: Holly Green
  • Warranty: Manufacturer-listed 10 years, subject to applicable terms

Important: The gauge, overfill alarm, cabinet and fittings must be checked against the exact item quoted. Do not combine the specifications of both configurations into one set of product dimensions or imply that every accessory is included with the standard tank.

Suitable applications

Commercial heating oil storage

Businesses with substantial heating requirements may consider a 10,000-litre tank for bulk storage of suitable heating oil. Confirm the heating system’s needs, delivery access, installation space and applicable storage requirements before selecting a tank.

Agricultural and rural operations

Farms and rural businesses may require high-capacity storage for suitable heating or operational oils. The correct configuration depends on the stored liquid, site layout, dispensing equipment and applicable safety requirements.

Industrial and commercial facilities

Factories, workshops, depots and other commercial facilities may need larger tanks for approved oil-storage applications. Verify compatibility with the stored liquid and ensure that the installation meets the requirements that apply to the site.

Fuel and oil storage

The manufacturer lists the tank for heating oil, kerosene, diesel, waste oils and other liquids subject to compatibility checks. Confirm suitability before storing a different fuel, oil or blend.

How bunded steel oil storage works

A bunded tank combines an inner tank for the liquid with an outer enclosure designed to provide secondary containment. Atlantis states that the standard bund is sized to hold 110% of the inner tank’s capacity.

This arrangement can help reduce the risk of a leak reaching the surrounding environment. It does not eliminate the need for appropriate installation, inspection, maintenance and spill-management procedures.

The manufacturer lists compliance with specified UK oil-pollution guidance and BS 799 Part 5 for this product. Applicable requirements depend on the location, stored liquid and installation. Confirm the current requirements for your site rather than assuming the tank automatically meets every regulation across the UK, Ireland or Europe.

Standard tank or cabinet-equipped tank?

Choosing the correct configuration is important when comparing prices and preparing the installation site.

Standard tank

The standard model may be suitable where the required filling and outlet arrangements can be accommodated without a separate fill-point cabinet. The manufacturer’s listing identifies the standard tank’s connection points and protective finish.

Cabinet-equipped tank

The cabinet-equipped model includes a lockable cabinet with a swing door and a front-mounted low-level fill point. The listed configuration also includes a contents gauge and battery-powered overfill alarm. These features can be useful where controlled access to filling equipment and monitoring accessories is required.

The cabinet adds to the overall length and weight. Confirm the full dimensions, included accessories and price of this version before ordering.

Optional accessories and configuration checks

Depending on the selected model and supplier availability, additional options may include:

  • Bottom outlet fitting kit with isolation valve and filter.
  • Mechanical or electronic tank contents gauge.
  • Lockable security lid or fill-point cabinet.
  • Overfill prevention equipment.
  • Additional paint or a different colour finish.
  • Steel-tank maintenance products.

Accessories may be supplied as standard on one configuration but optional on another. Request an itemised quotation to establish exactly what is included.

Installation and site preparation

A 10,000-litre steel tank is heavy equipment and requires careful planning before delivery. Ensure the proposed installation area has a suitable, level and adequately load-bearing base.

The manufacturer recommends a base extending 300 mm beyond the tank on all sides. Confirm the current installation instructions and any site-specific requirements before constructing the base. Allow additional space for the cabinet-equipped version and for access during filling, inspection and maintenance.

Delivery and lifting arrangements should be agreed in advance. Customer offloading may be required, and a HIAB or specialist lifting service may incur additional charges. Confirm vehicle access, unloading responsibility, delivery costs and lead time before ordering.

Why order through EuroFuelSupply?

EuroFuelSupply supplies heating, fuel-storage and related equipment for domestic and commercial customers. Our sales team can help confirm the tank configuration, check available accessories and provide a quotation for the required delivery location.

When requesting a quote, provide your delivery postcode, intended stored liquid, preferred tank configuration and unloading requirements. This helps the team confirm the appropriate product and delivery arrangements.

Request a quote for the Atlantis 10000L Bunded Steel Oil Tank

Looking for a high-capacity steel tank for your oil-storage project? Contact EuroFuelSupply to check availability, compare the standard and cabinet-equipped versions, confirm technical specifications and request a delivery quotation.

Please verify the final model reference, dimensions, weight, included fittings, warranty terms and delivery arrangements before purchase.

Frequently asked questions

How much can the Atlantis 10000L tank hold?

The tank has a nominal capacity of 10,000 litres, approximately 2,200 UK gallons. The safe filling quantity may be lower depending on the manufacturer’s instructions and applicable operating requirements.

What are the dimensions of the standard tank?

The standard Atlantis TAN.BUS-10000 is listed at approximately 3,350 mm long, 1,830 mm wide and 1,830 mm high. The cabinet-equipped version is approximately 3,800 mm long, with the same listed width and height.

How much does the tank weigh?

The standard tank is listed at approximately 1,500 kg. The cabinet-equipped version is listed at approximately 1,540 kg. Confirm the exact configuration before arranging transport or lifting equipment.

What liquids can be stored in this tank?

The manufacturer lists heating oil, kerosene, diesel, waste oils and other liquids subject to suitability checks. Confirm material compatibility before storing any other liquid or fuel blend.

Is the fill-point cabinet included?

Not with every configuration. The standard tank and cabinet-equipped version are listed separately. Check the product option and quotation to confirm whether the lockable cabinet is included.

Does the cabinet-equipped model include a gauge and overfill alarm?

The listed cabinet-equipped version includes a hydrostatic Unitel contents gauge and a battery-powered overfill alarm. Confirm these items against the exact model and quotation before ordering.

Does the tank come with a warranty?

The manufacturer lists a 10-year warranty. Check the supplied warranty documentation for coverage, conditions, exclusions and any registration requirements.

Is the tank compliant with UK oil-storage regulations?

The manufacturer lists compliance with specified UK oil-pollution guidance and BS 799 Part 5. Requirements can vary according to the site, stored liquid and current regulations. Obtain appropriate installation advice and confirm the rules that apply to your location.

Is delivery and offloading included?

Not necessarily. The product listing states that customer offloading may be required. Confirm the delivery cost, unloading responsibility and whether HIAB or other specialist lifting services can be arranged.

What should I provide when requesting a quote?

Provide your delivery postcode, preferred configuration, intended stored liquid and unloading requirements. Include any accessory or installation requirements so the sales team can prepare a more accurate quotation.
