Home » Shop » Renewable Energy Europe » Warmflow Zeno Ground Source Heat Pump for European Heating Projects

Warmflow Zeno Ground Source Heat Pump for European Heating Projects

€7,620.00

The Warmflow Zeno Ground Source Heat Pump range offers ground-based renewable heating options for suitable residential and commercial projects. The listed models include the GS08 (2.5–8kW) and GS03 (4.5–18kW). Contact EuroFuelSupply to confirm model availability, technical specifications, system requirements and delivery options for your European destination.
Excl.Tax: £ 6,350.00
Product Options:  Outputs:   2.5-8Kw- 4.5-18Kw
Fuel Supplier Europe2 Items sold in last 24 hours
10 People watching this product now!

Warmflow Zeno Ground Source Heat Pump for European Heating Projects

Looking for a ground source heat pump for a residential property, renovation or suitable commercial building? The Warmflow Zeno Ground Source Heat Pump is a renewable heating solution designed to extract heat from the ground and transfer it into a building’s heating system.

Unlike an air source heat pump, which collects heat from outdoor air, a ground source heat pump uses a buried ground loop or another suitable ground heat exchanger. The system transfers collected heat through a refrigeration cycle to provide heating for compatible radiators, underfloor heating and, where correctly configured, domestic hot water.

The Warmflow Zeno range listed by EuroFuelSupply includes two model options: the GS08, rated at 2.5–8kW, and the GS03, rated at 4.5–18kW. The appropriate choice depends on the property’s calculated heat demand, ground conditions, heat-exchanger design and required heating-water temperature.

Whether you are planning a new-build project, replacing an existing heating system or sourcing renewable heating equipment, contact EuroFuelSupply to confirm the selected model, technical documentation, availability and delivery options for your European destination.

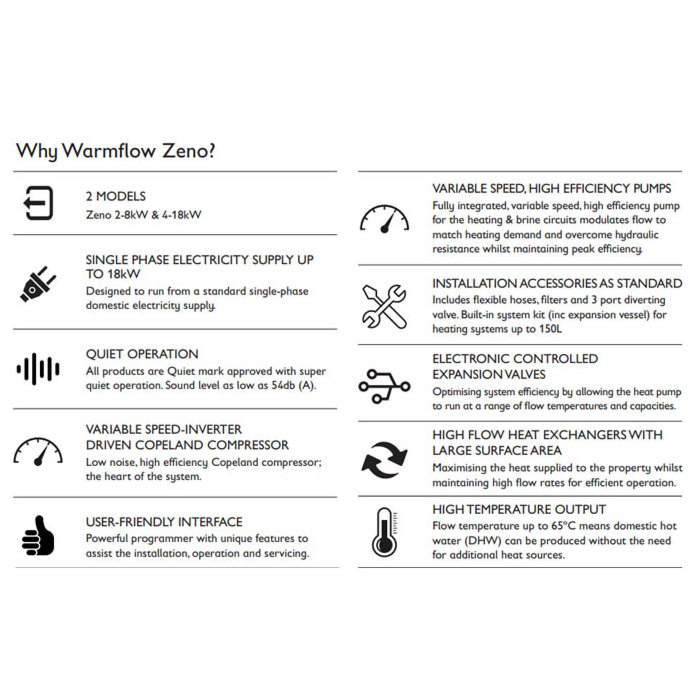

Why Consider a Warmflow Zeno Ground Source Heat Pump?

Ground source heat pumps use heat energy stored in the ground. Ground temperatures are generally more stable than outdoor air temperatures, although actual performance depends on location, ground conditions, system design and operating requirements.

Potential benefits include:

  • Ground-based heat extraction: Collects heat through a suitably designed ground loop or heat exchanger.
  • Two listed output ranges: Choose between the GS08 and GS03 models according to the calculated heating demand.
  • Space-heating applications: Can be designed for compatible underfloor heating and radiator systems.
  • Domestic hot-water integration: Can form part of a suitable hot-water system with the required cylinder and controls.
  • Renewable heating potential: Uses electricity to transfer heat rather than relying solely on direct electric resistance heating.
  • Suitable for selected new-build and retrofit projects: Feasibility depends on the property, installation space and ground-loop requirements.

The actual energy consumption, seasonal efficiency and running costs depend on the installation, electricity tariff, heat demand, ground-loop design and heating-system temperatures. Obtain a project-specific assessment before estimating savings.

Warmflow Zeno Ground Source Heat Pump Models

The current product listing identifies two models in the range.

Warmflow Zeno GS08 — 2.5–8kW

The GS08 is listed with an output range of 2.5–8kW. It may be suitable for projects with a lower calculated heat demand, subject to verified performance data and a professional heating-system design.

Before selecting this model, consider the building’s insulation, heat-loss calculation, hot-water demand, intended flow temperature and the available ground-loop design.

Warmflow Zeno GS03 — 4.5–18kW

The GS03 is listed with an output range of 4.5–18kW. Its broader stated capacity range may be relevant to projects with greater heating demand, depending on the manufacturer’s operating specifications.

The model should be selected using the required heat output at the expected operating conditions, not simply the building’s floor area. Confirm the model’s output, operating limits and electrical requirements with the manufacturer’s technical documentation.

Important: The stated output ranges should be checked against the latest manufacturer data. Ground source heat-pump capacity and efficiency can vary according to ground-loop temperatures and heating-water temperatures.

How Does a Ground Source Heat Pump Work?

A ground source heat pump transfers heat from the ground into a building through a series of components.

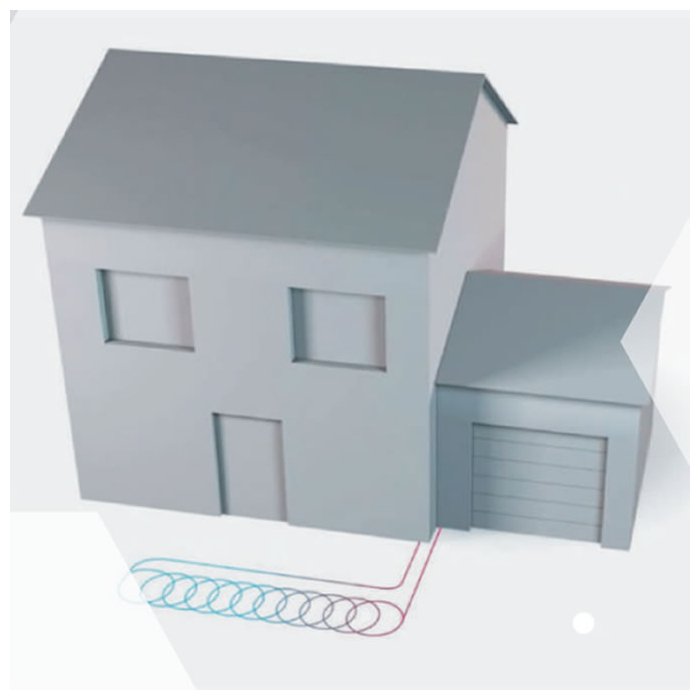

  1. Ground heat collection: A buried pipe loop or suitable ground heat exchanger collects heat from the surrounding ground.
  2. Heat transfer: A circulating fluid carries the collected energy to the heat pump.
  3. Temperature increase: A refrigeration cycle raises the temperature of the collected heat to a level suitable for the heating system.
  4. Building heating: The system transfers heat to water used by compatible radiators or underfloor heating.
  5. Hot-water production: Where the system is designed for it, a compatible cylinder and controls can provide domestic hot water.

The design of the ground collector is important. Its required length, layout and installation depth depend on ground conditions, local climate, heating demand and the system’s operating characteristics.

Ground Source Heat Pump Applications

Residential heating

A correctly sized ground source heat pump can provide space heating for a house or other residential building. The installation should be designed around the property’s heat-loss calculation, insulation, heating emitters and domestic hot-water requirements.

New-build properties

Ground source systems can be considered during the planning stage of a new home or building. Early planning can help coordinate the ground collector, plant room, pipework and heating distribution system.

Renovation and heating-system upgrades

Ground source heat pumps may be suitable for some renovation projects, but the feasibility of retrofitting a system depends on the available land or borehole options, existing heating infrastructure, building fabric and installation budget.

Commercial buildings

Selected offices, commercial premises and other buildings may benefit from ground source heating where the heat demand, site conditions and project economics support the installation. A detailed feasibility study is recommended before specifying equipment.

Underfloor heating and radiators

Ground source heat pumps can supply compatible underfloor heating systems and appropriately designed radiators. System performance is generally influenced by the water temperature required by the heat emitters, so radiator sizing and hydraulic design should be assessed by the installer.

Planning a Ground Source Heat Pump Installation in Europe

European projects can have very different installation requirements depending on local climate, property type, geology and regulations. Before selecting a Warmflow Zeno model, consider the following factors.

  • Building heat loss: Calculate the heating requirement using the building’s insulation, construction and design temperatures.
  • Ground conditions: Assess the soil or rock conditions and the feasibility of a horizontal ground loop or vertical boreholes.
  • Available land: Horizontal collectors require suitable ground area, while borehole systems require specialist drilling and site assessment.
  • Heating-water temperature: Lower flow temperatures can improve heat-pump performance when the system is properly designed.
  • Hot-water demand: Select an appropriate cylinder and control strategy if domestic hot water is required.
  • Electrical supply: Confirm the electrical requirements and installation provisions for the chosen model.
  • Noise and plant-room access: Follow the manufacturer’s requirements for installation, servicing and ventilation.
  • Permits and regulations: Check applicable drilling, groundwater, environmental, electrical and construction requirements in your country.

For installations outside the manufacturer’s established support network, confirm warranty eligibility, local technical support, spare-parts availability and compliance before purchasing.

Technical Specifications

The product page currently lists the following model information:

  • Product range: Warmflow Zeno Ground Source Heat Pump
  • Model GS08: Listed output range of 2.5–8kW
  • Model GS03: Listed output range of 4.5–18kW
  • Technology: Ground source heat pump
  • Intended application: Heating systems for suitable residential and other buildings
  • Heating distribution: Compatible radiators or underfloor heating, subject to system design
  • Domestic hot water: Possible with an appropriately designed system and compatible cylinder

Additional specifications—including electrical input, refrigerant, sound power, operating limits, performance at specific source and flow temperatures, dimensions and weight—should be confirmed from the current manufacturer datasheet for the exact model.

The existing page also advertises a seasonal coefficient of performance (SCoP) figure of 5.08. Confirm the figure, test conditions and applicable model before using it in a buying decision or marketing claim. SCoP is a ratio, not a percentage.

Buying a Warmflow Zeno Ground Source Heat Pump in Europe

EuroFuelSupply welcomes enquiries from customers seeking heating and renewable-energy products for supported European destinations. Before ordering, confirm the exact model, price, technical specification and delivery arrangements for your country.

When requesting a quotation, please provide:

  • Your delivery country and postcode
  • The preferred model: GS08 or GS03
  • The building type and intended application
  • Whether the system will supply domestic hot water
  • Your preferred heating distribution system
  • Any existing heat-loss calculation or installer specification
  • Any site information relevant to ground-loop installation

This information can help establish which model and additional system components may be appropriate for further assessment.

Explore our renewable energy products, browse hot water cylinders, or visit our Wholesale Energy Products Europe page.

Delivery and Product Support

Delivery availability and charges depend on your destination, stock location, transport arrangements and the selected equipment. Contact EuroFuelSupply to confirm whether your country and postcode are covered before placing an order.

A ground source heat-pump installation normally involves more than the heat pump itself. Depending on the project, additional work may include ground-loop design and installation, drilling or excavation, circulation pipework, electrical connections, controls, hydraulic components, a hot-water cylinder and commissioning.

Confirm whether these components and services are included in your quotation or must be sourced separately. Installation and commissioning should be carried out by appropriately qualified professionals in accordance with the manufacturer’s instructions and applicable local requirements.

For further information, visit our Shipping and Delivery page or submit your requirements through our Get a Quote page.

Contact EuroFuelSupply

Email: sales@eurofuelsupply.com

Frequently Asked Questions

1. What is the Warmflow Zeno Ground Source Heat Pump?

The Warmflow Zeno is a ground source heat pump range designed to transfer heat collected from the ground into a building’s heating system. Its suitability depends on the model, the property’s heating requirements and the ground collector design.

2. Which Warmflow Zeno ground source heat pump models are listed?

The current listing identifies the GS08 with a stated output range of 2.5–8kW and the GS03 with a stated range of 4.5–18kW. Confirm current availability and the manufacturer’s specifications before selecting a model.

3. What is the difference between a ground source and an air source heat pump?

A ground source heat pump extracts heat from the ground through a ground collector, while an air source heat pump extracts heat from outdoor air. Ground temperatures are generally more stable than outdoor air temperatures, but ground source systems usually require additional ground-loop or drilling work.

4. Is the Warmflow Zeno suitable for residential properties?

It may be suitable for residential properties when the heat pump is correctly sized and the site can accommodate a suitable ground collector. A heat-loss assessment and site feasibility study are important before purchasing.

5. Can a ground source heat pump work with radiators?

Yes, it can be designed to work with compatible radiators. The radiator sizes and required water temperatures should be checked because higher flow temperatures can affect heat-pump efficiency.

6. Can the Warmflow Zeno provide domestic hot water?

A suitably designed ground source heat-pump system can provide domestic hot water using a compatible cylinder and controls. Confirm whether the cylinder, valves, controls and associated components are included in the product or must be purchased separately.

7. Does installing a ground source heat pump require digging?

Most ground source systems require a heat collector installed underground. This may involve horizontal trenching or vertical boreholes, depending on the site and system design. Ground conditions, land availability and local permissions can influence the installation method and cost.

8. Is the Warmflow Zeno energy efficient?

Ground source heat pumps can deliver more thermal energy than the electrical energy they consume under suitable operating conditions. Actual performance depends on ground temperatures, system design, flow temperatures and installation quality. Request verified performance data for the selected model.

9. What does an SCoP of 5.08 mean?

An SCoP of 5.08 would represent a seasonal performance ratio under the applicable test or calculation conditions—not 5.08%. Before relying on this figure, verify that it applies to the selected Warmflow Zeno model and obtain the associated test conditions from the manufacturer.

10. Is the Warmflow Zeno suitable for cold European climates?

Suitability depends on the model’s operating limits, ground conditions, system design and the property’s heating requirements. Ground source systems use heat from the ground, but the collector must be designed appropriately for local conditions and expected demand.

11. Is ground-loop installation included in the heat pump price?

Do not assume that excavation, drilling, ground-loop materials, installation or commissioning are included. Confirm the precise scope of supply and any additional project costs in your quotation.

12. Can I order the Warmflow Zeno for delivery in Europe?

Delivery depends on your destination country, available stock and transport arrangements. Contact EuroFuelSupply with your country and postcode to confirm availability and request a quotation.

13. How do I request a quotation?

Visit our Get a Quote page or email sales@eurofuelsupply.com. You can also reach us through WhatsApp at +49 152 17842843. Include your preferred model, delivery destination and any relevant installation requirements.

Request a Warmflow Zeno Ground Source Heat Pump Quote

Considering a Warmflow Zeno ground source heat pump for a home, renovation, new-build or suitable commercial project? Contact EuroFuelSupply to confirm the available model, obtain the relevant technical information and discuss delivery options for your European destination.
